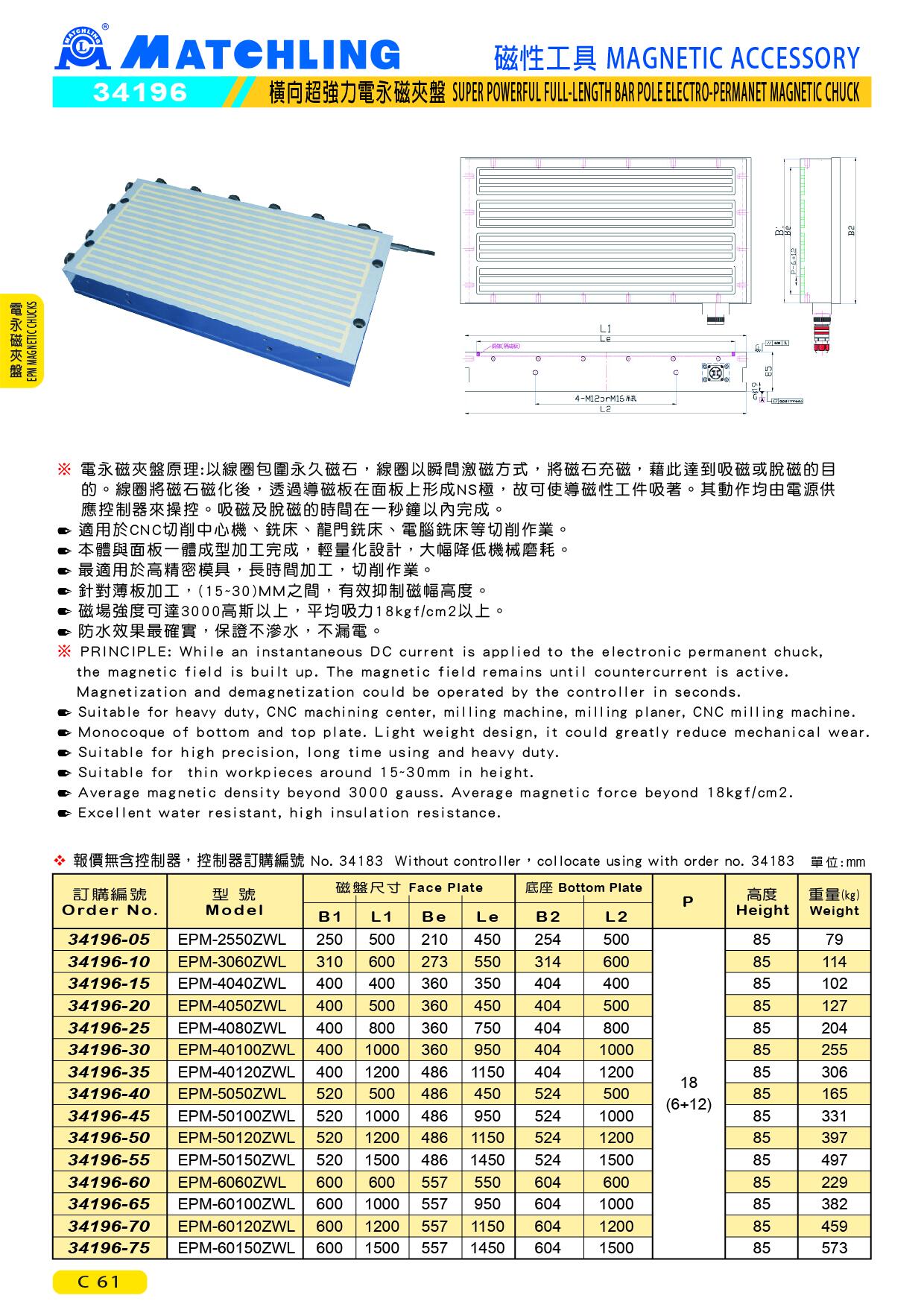

34196 Super Powerful Full-length Bar Pole Electro-permanent Magnetic Chuck

Description
Specifications

※PRINCIPLE: While an instantaneous DC current is applied to the electronic permanent chuck, the magnetic field is built up. The magnetic field remains until countercurrent is active.
Magnetization and demagnetization could be operated by the controller in seconds.
●Suitable for heavy duty, CNC machining center, milling machine, milling planer, CNC milling machine.
●Monocoque of bottom and top plate. Light weight design, it could greatly reduce mechanical wear.
●Suitable for high precision, long time using and heavy duty.
●Suitable for thin workpieces around 15-30mm in height.
●防Average magnetic density beyond 3000 gauss. Average magnetic force beyond 18kgf/cm2.
●Excellent water resistant, high insulation resistance.

※Without controllercollocate using with order no. 34183

unit：mm

Order No.	Model	Face Plate				Bottom Plate		P	Height	Exclusive use Chuck Master	Weight (kg)
Order No.	Model	B1	L1	Be	Le	B2	L2	P	Height	Exclusive use Chuck Master	Weight (kg)
34196-05	EPM-2550ZWL	250	500	210	450	254	500	18 (6+12)	85	EPM-30S	79
34196-10	EPM-3060ZWL	310	600	273	550	314	600		85		114
34196-15	EPM-4040ZWL	400	400	360	350	404	400		85		102
34196-20	EPM-4050ZWL	400	500	360	450	404	500		85		127
34196-25	EPM-4080ZWL	400	800	360	750	404	800		85		204
34196-30	EPM-40100ZWL	400	1000	360	950	404	1000		85		255
34196-35	EPM-40120ZWL	400	1200	486	1150	404	1200		85		306
34196-40	EPM-5050ZWL	520	500	486	450	524	500		85		165
34196-45	EPM-50100ZWL	520	1000	486	950	524	1000		85		331
34196-50	EPM-50120ZWL	520	1200	486	1150	524	1200		85		397
34196-55	EPM-50150ZWL	520	1500	486	1450	524	1500		85		497
34196-60	EPM-6060ZWL	600	600	557	550	604	600		85		229
34196-65	EPM-60100ZWL	600	1000	557	950	604	1000		85		382
34196-70	EPM-60120ZWL	600	1200	557	1150	604	1200		85		459
34196-75	EPM-60150ZWL	600	1500	557	1450	604	1500		85		573
