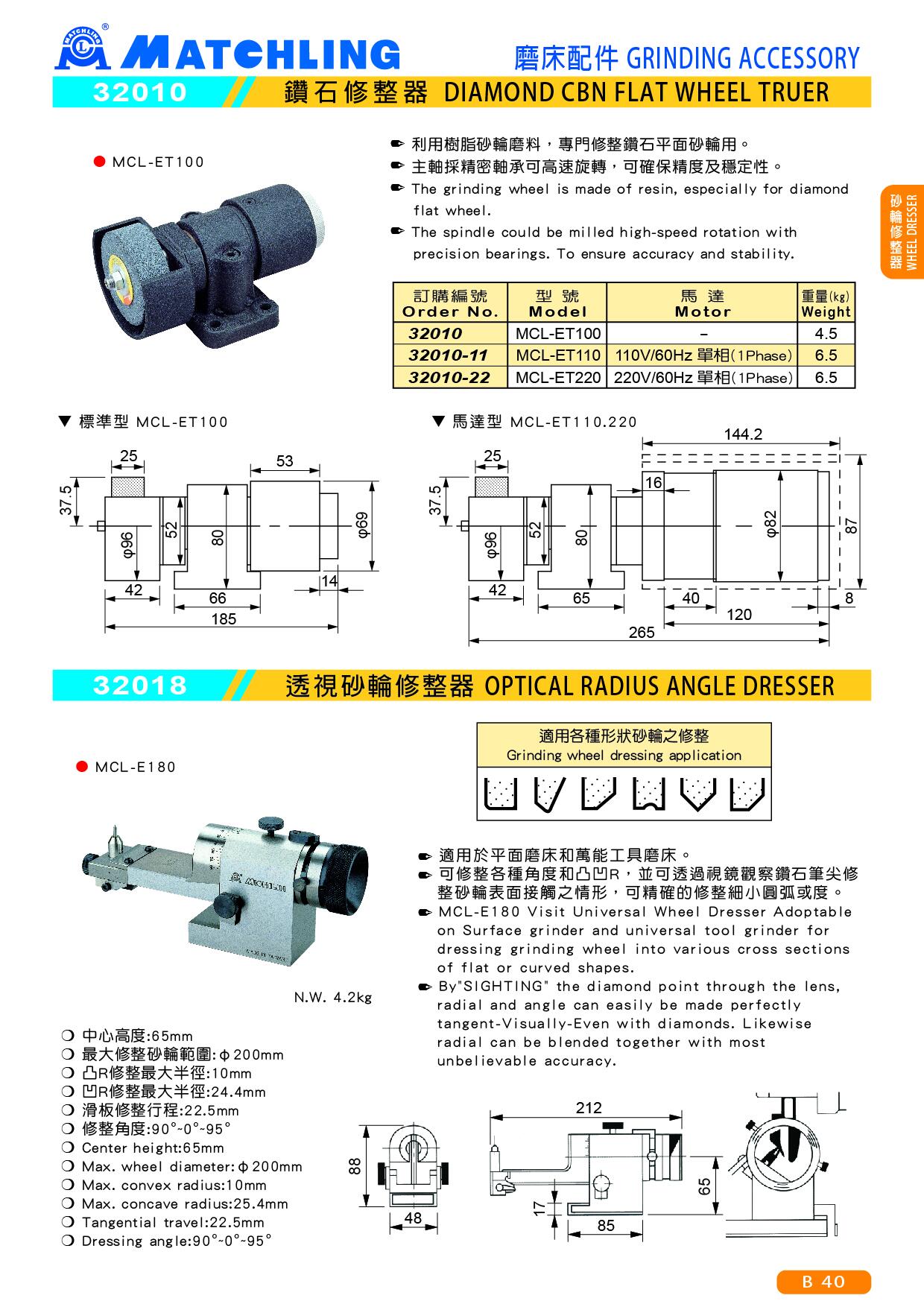

32018 Optical Radius Angle Dresser

● MCL-E180 Visit Universal Wheel Dresser Adoptable on Surface grinder and universal tool grinder for dressing grinding wheel into various cross sections of flat or    curved shapes.
● By"SIGHTING" the diamond point through the lens, radial and angle can easily be made perfectly tangent-Visually-Even with diamonds. Likewise radial can be blended    together with most unbelievable accuracy.

■ Specifications:
● Center height:65mm
● Max. wheel diameter:φ200mm
● Max. convex radius:10mm
● Max. concave radius:25.4mm
● Tangential travel:22.5mm
● Dressing angle:90°~0°~95°
● Weight:4.2kg
