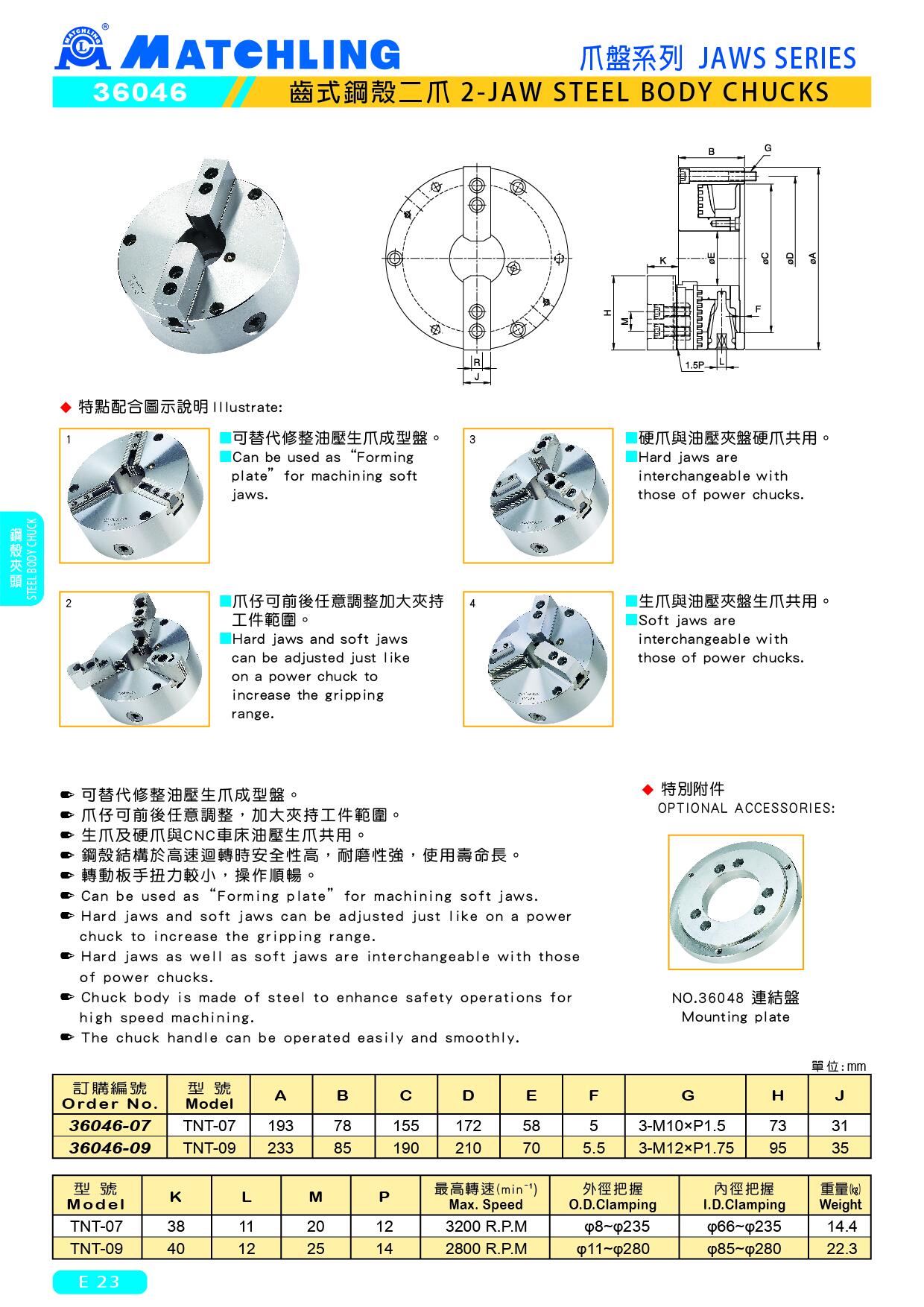

36046 2-JAW STEEL BODY CHUCKS
● Can be used as“Forming plate”for machining soft jaws.
● Hard jaws and soft jaws can be adjusted just like on a power chuck to increase the gripping range.
● Hard jaws as well as soft jaws are interchangeable with those of power chucks.
● Chuck body is made of steel to enhance safety operations for high speed machining.
● The chuck handle can be operated easily and smoothly.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | J | |||||||
| 36046-07 | TNT-07 | 193 | 78 | 155 | 172 | 58 | 5 | 3-M10xP1.5 | 73 | 31 | |||||||
| 36046-09 | TNT-09 | 233 | 85 | 190 | 210 | 70 | 5.5 | 3-M12xP1.75 | 95 | 35 | |||||||
| Model | K | L | M | P | Max. Speed (min-1) | O.D.CIamping | I.D.CIamping | Weight (kg) | |||||||||
| TNT-07 | 38 | 11 | 20 | 12 | 3200 R.P.M | φ8~ φ235 | φ66~ φ235 | 14.4 | |||||||||
| TNT-09 | 40 | 12 | 25 | 14 | 2800 R.P.M | φ1~φ280 | φ85~ φ280 | 22.3 | |||||||||
