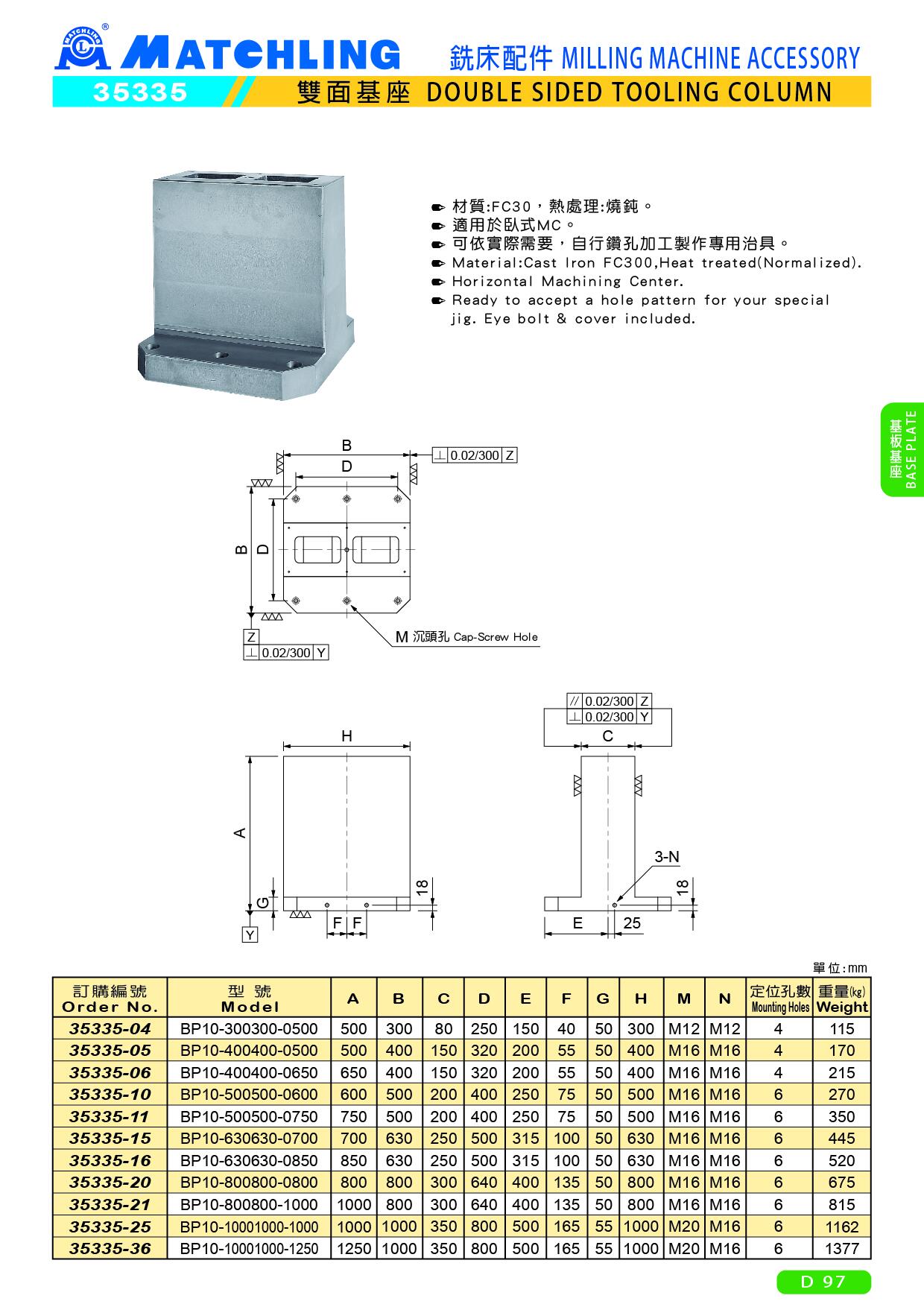

35335 DOUBLE SIDED TOOLING COLUMN
● Material:Cast Iron FC300,Heat treated(Normalized).
● Horizontal Machining Center.
● Ready to accept a hole pattern for your special jig. Eye bolt & cover included.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | M | N | Mounting Holes | Weight (kg) |
| 35335-04 | BP10-300300-0500 | 500 | 300 | 80 | 250 | 150 | 40 | 50 | 300 | M12 | M12 | 4 | 115 |
| 35335-05 | BP10-400400-0500 | 500 | 400 | 150 | 320 | 200 | 55 | 50 | 400 | M16 | M16 | 4 | 170 |
| 35335-06 | BP10-400400-0650 | 650 | 400 | 150 | 320 | 200 | 55 | 50 | 400 | M16 | M16 | 4 | 215 |
| 35335-10 | BP10-500500-0600 | 600 | 500 | 200 | 400 | 250 | 75 | 50 | 500 | M16 | M16 | 6 | 270 |
| 35335-11 | BP10-500500-0750 | 750 | 500 | 200 | 400 | 250 | 75 | 50 | 500 | M16 | M16 | 6 | 350 |
| 35335-15 | BP10-630630-0700 | 700 | 630 | 250 | 500 | 315 | 100 | 50 | 630 | M16 | M16 | 6 | 445 |
| 35335-16 | BP10-630630-0850 | 850 | 630 | 250 | 500 | 315 | 100 | 50 | 630 | M16 | M16 | 6 | 520 |
| 35335-20 | BP10-800800-0800 | 800 | 800 | 300 | 640 | 400 | 135 | 50 | 800 | M16 | M16 | 6 | 675 |
| 35335-21 | BP10-800800-1000 | 1000 | 800 | 300 | 640 | 400 | 135 | 50 | 800 | M16 | M16 | 6 | 815 |
| 35335-25 | BP10-10001000-1000 | 1000 | 1000 | 350 | 800 | 500 | 165 | 55 | 1000 | M20 | M16 | 6 | 1162 |
