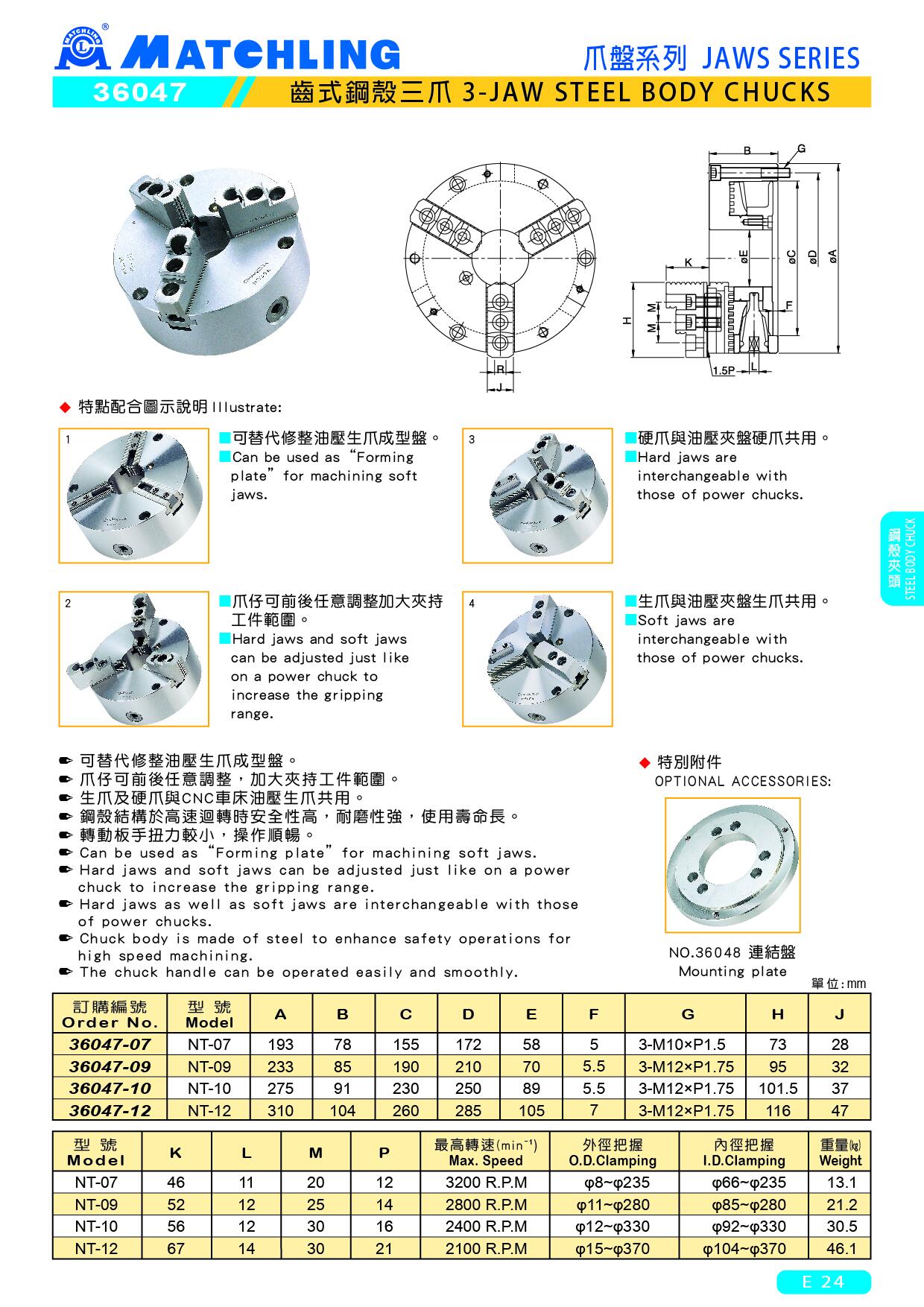

36047 3-JAW STEEL BODY CHUCKS
● Can be used as“Forming plate”for machining soft jaws.
● Hard jaws and soft jaws can be adjusted just like on a power chuck to increase the gripping range.
● Hard jaws as well as soft jaws are interchangeable with those of power chucks.
● Chuck body is made of steel to enhance safety operations for high speed machining.
● The chuck handle can be operated easily and smoothly.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | J | |||||||
| 36047-07 | NT-07 | 193 | 78 | 155 | 172 | 58 | 5 | 3-M10xP1.5 | 73 | 28 | |||||||
| 36047-09 | NT-09 | 233 | 85 | 190 | 210 | 70 | 5.5 | 3-M12xP1.75 | 95 | 32 | |||||||
| 36047-10 | NT-10 | 275 | 91 | 230 | 250 | 89 | 5.5 | 3-M12xP1.75 | 101.5 | 37 | |||||||
| 36047-12 | NT-12 | 310 | 104 | 260 | 285 | 105 | 7 | 3-M12xP1.75 | 116 | 47 | |||||||
| Model | K | L | M | P | Max. Speed (min-1) | O.D.CIamping | I.D.CIamping | Weight (kg) | |||||||||
| NT-07 | 46 | 11 | 20 | 12 | 3200 R.P.M | φ8~φ235 | φ66~φ235 | 13.1 | |||||||||
| NT-09 | 52 | 12 | 25 | 14 | 2800 R.P.M | φ11~φ280 | φ85~φ280 | 21.2 | |||||||||
| NT-10 | 56 | 12 | 30 | 16 | 2400 R.P.M | φ12~φ330 | φ92~φ330 | 30.5 | |||||||||
| NT-12 | 67 | 14 | 30 | 21 | 2100 R.P.M | φ15~φ370 | φ104~φ370 | 46.1 | |||||||||
