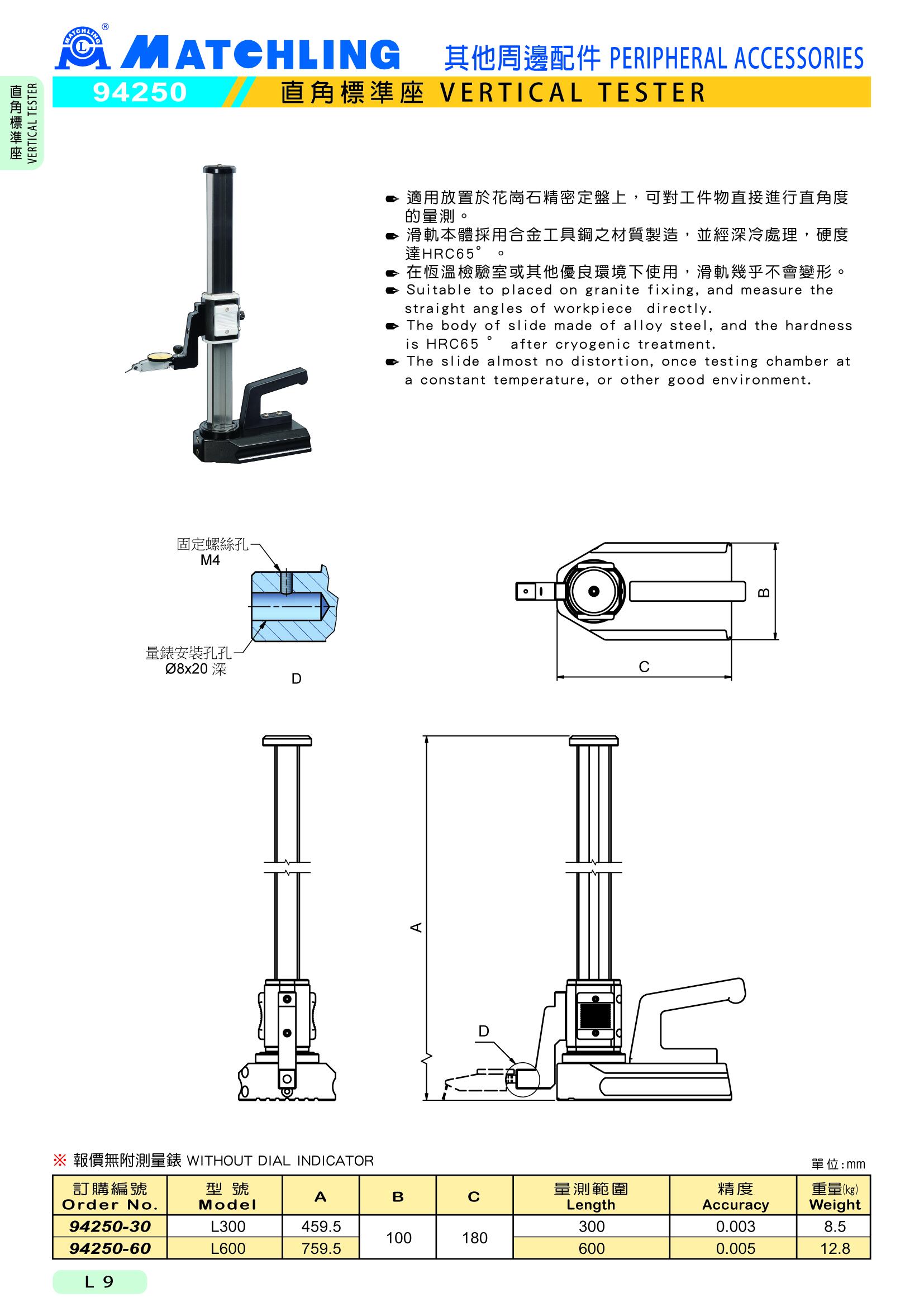

94250 VERTICAL TESTER
CALIPER / MICROMETER / VERTICAL TESTER / GAUGE BLOCK
► Suitable to placed on granite fixing, and measure the straight angles of workpiece directly.
► The body of slide made of alloy steel, and the hardness is HRC65 ° after cryogenic treatment.
► The slide almost no distortion, once testing chamber at a constant temperature, or other good environment.
※ WITHOUT DIAL INDICATOR unit：mm
| Order NO. | Model | A | B | C | Length | Accuracy | Weight(kg) |
|---|---|---|---|---|---|---|---|
| 94250-30 | L300 | 459.5 | 100 | 180 | 300 | 0.003 | 8.5kg |
| 94250-60 | L600 | 759.5 | 100 | 180 | 600 | 0.005 | 12.8kg |
