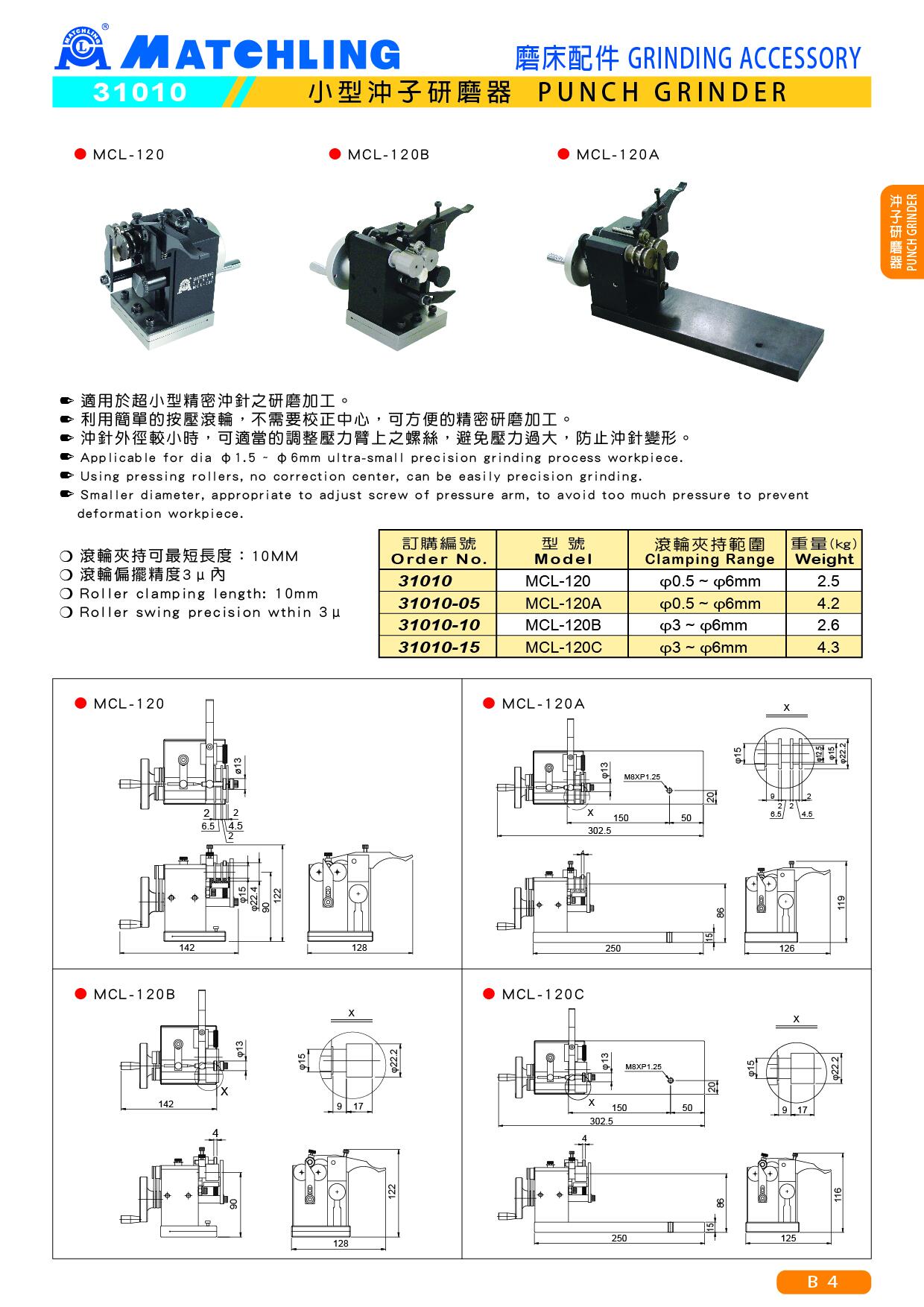

31010 Punch Grinder
Ultra-small 31010 punch grinder for φ1.5–φ6 mm workpieces, featuring pressing rollers, easy operation, and adjustable pressure to prevent deformation.
- Applicable for dia φ1.5 ~ φ6mm ultra-small precision grinding process workpiece.
- Using pressing rollers, no correction center, can be easily precision-ground.
- Smaller diameter, appropriate to adjust the screw of the pressure arm, to avoid too much pressure, and prevent deformation of the workpiece.
■ Specifications:
- Roller clamping length: 10mm
- Roller swing precision within 3μ
unit：mm
| Order No. | Model | Grinding Diameter | weight (kg) |
|---|---|---|---|
| 31010 | MCL-120 | φ0.5 ~ φ6mm | 2.5 |
| 31010-05 | MCL-120A | φ0.5 ~ φ6mm | 4.2 |
| 31010-10 | MCL-120B | φ3 ~ φ6mm | 2.6 |
| 31010-15 | MCL-120C | φ3 ~ φ6mm | 4.3 |
