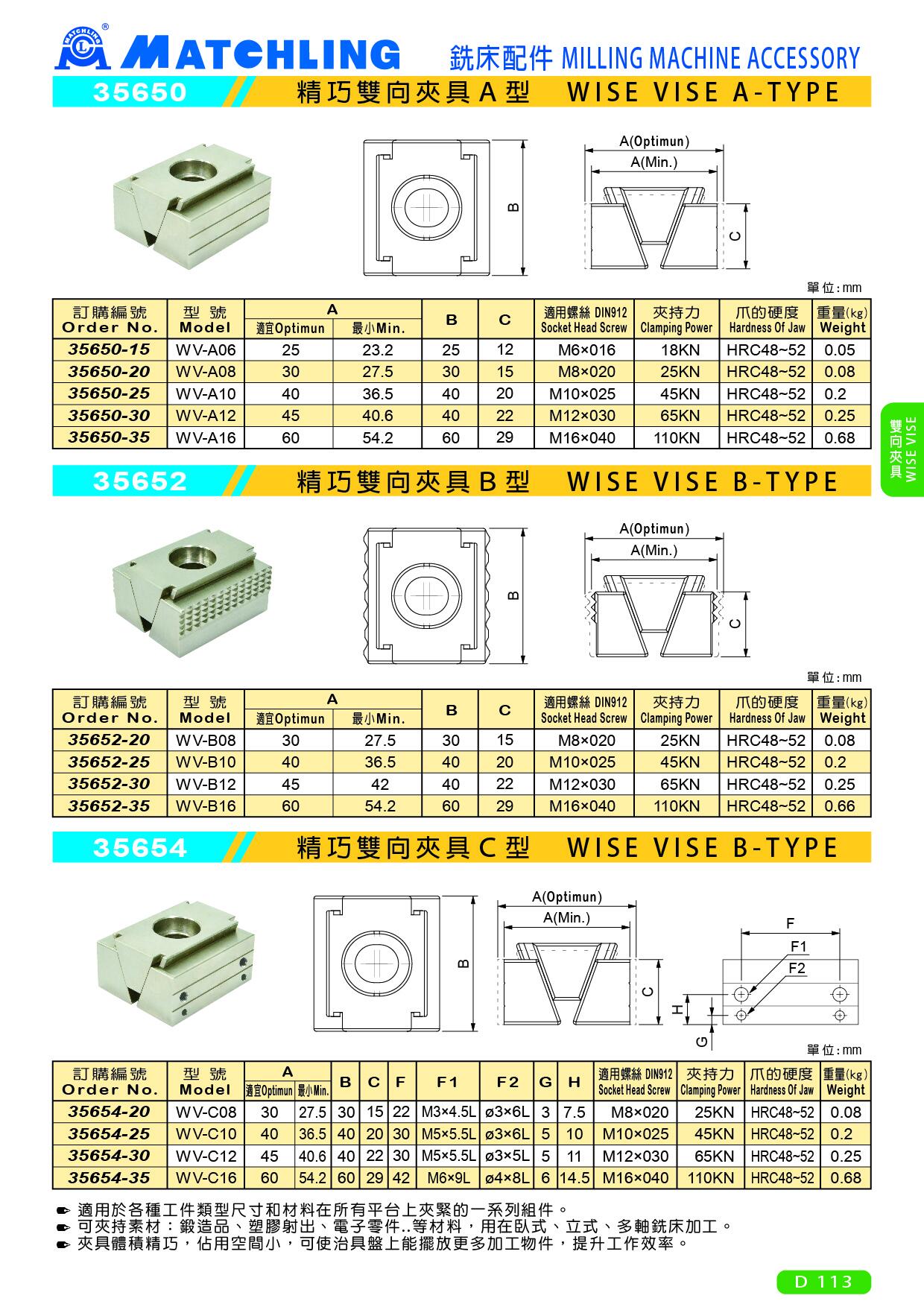

35652 Wise Vise B-type
unit：mm
| Order No. | Model | Ａ | Ｂ | Ｃ | DIN912 Socket Head Screw | Clamping Power | Hardness of Jaw | Weight (kg) | |
| Optimun | Min. | ||||||||
| 35652-20 | WV-B08 | 30 | 27.5 | 30 | 15 | M8×020 | 25KN | HRC48~52 | 0.08 |
| 35652-25 | WV-B10 | 40 | 36.5 | 40 | 20 | M10×025 | 45KN | HRC48~52 | 0.2 |
| 35652-30 | WV-B12 | 45 | 42 | 40 | 22 | M12×030 | 65KN | HRC48~52 | 0.25 |
| 35652-35 | WV-B16 | 60 | 54.2 | 60 | 29 | M16×040 | 110KN | HRC48~52 | 0.66 |
