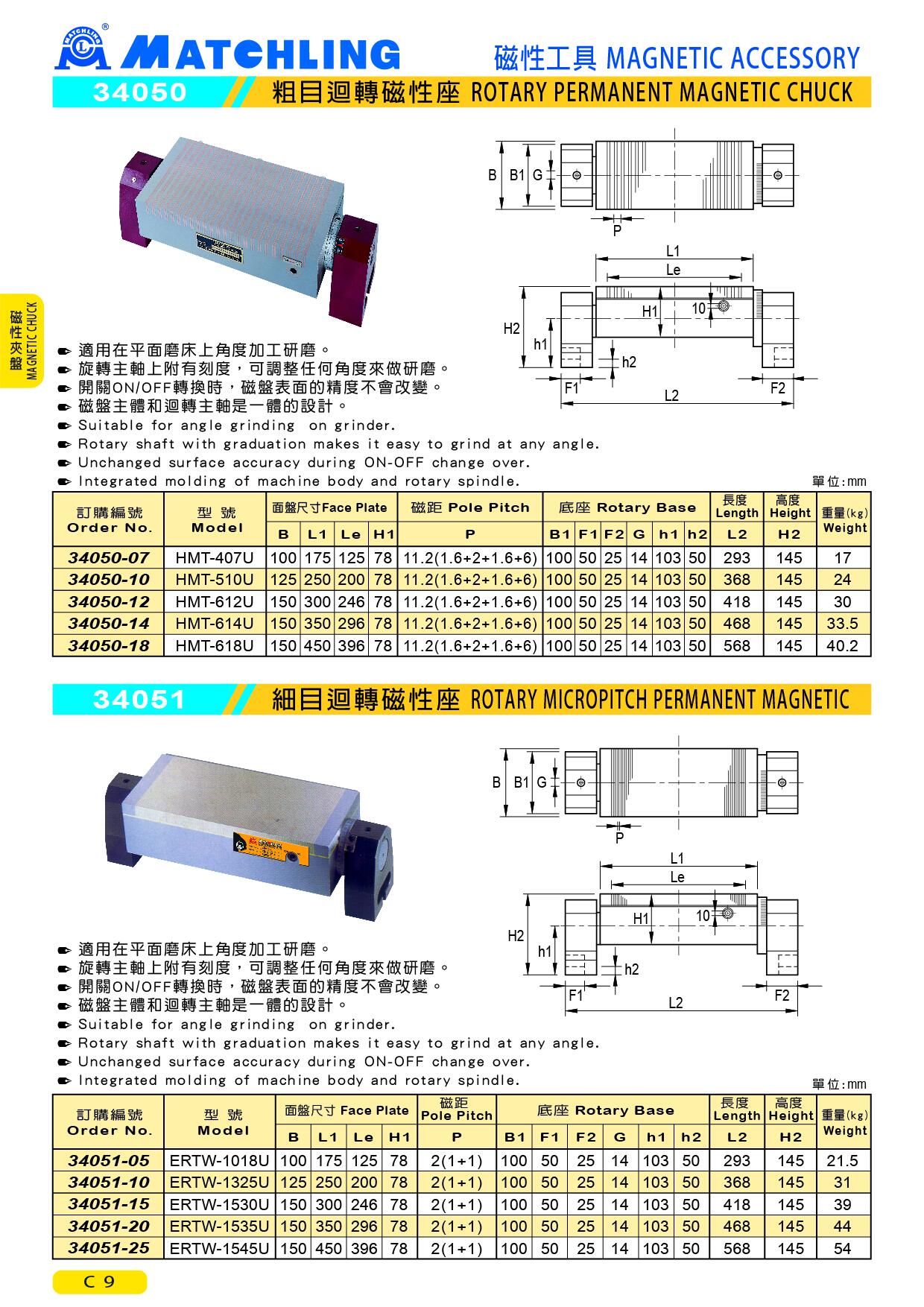

34050 ROTARY PERMANENT MAGNETIC CHUCK
● Suitable for angle grinding on grinder.
● Rotary shaft with graduation makes it easy to grind at any angle.
● Unchanged surface accuracy during ON-OFF change over.
● Integrated molding of machine body and rotary spindle.
unit：mm
| Order No. | Model | Face Plate | Pole Pitch | Rotary Base | Length | Height | Weight (kg) | ||||||||
| B | L1 | Le | H1 | P | B1 | F1 | F2 | G | h1 | h2 | L2 | H2 | |||
| 34050-07 | HMT-407U | 100 | 75 | 125 | 78 | 11.2(1.6+2+1.6+6) | 100 | 50 | 25 | 14 | 103 | 50 | 293 | 145 | 17 |
| 34050-10 | HMT-510U | 125 | 250 | 200 | 78 | 11.2(1.6+2+1.6+6) | 100 | 50 | 25 | 14 | 103 | 50 | 368 | 145 | 24 |
| 34050-12 | HMT-612U | 150 | 300 | 246 | 78 | 11.2(1.6+2+1.6+6) | 100 | 50 | 25 | 14 | 103 | 50 | 418 | 145 | 30 |
| 34050-14 | HMT-614U | 150 | 350 | 296 | 78 | 11.2(1.6+2+1.6+6) | 100 | 50 | 25 | 14 | 103 | 50 | 468 | 145 | 33.5 |
| 34050-18 | HMT-618U | 150 | 450 | 396 | 78 | 11.2(1.6+2+1.6+6) | 100 | 50 | 25 | 14 | 103 | 50 | 568 | 145 | 40.2 |
