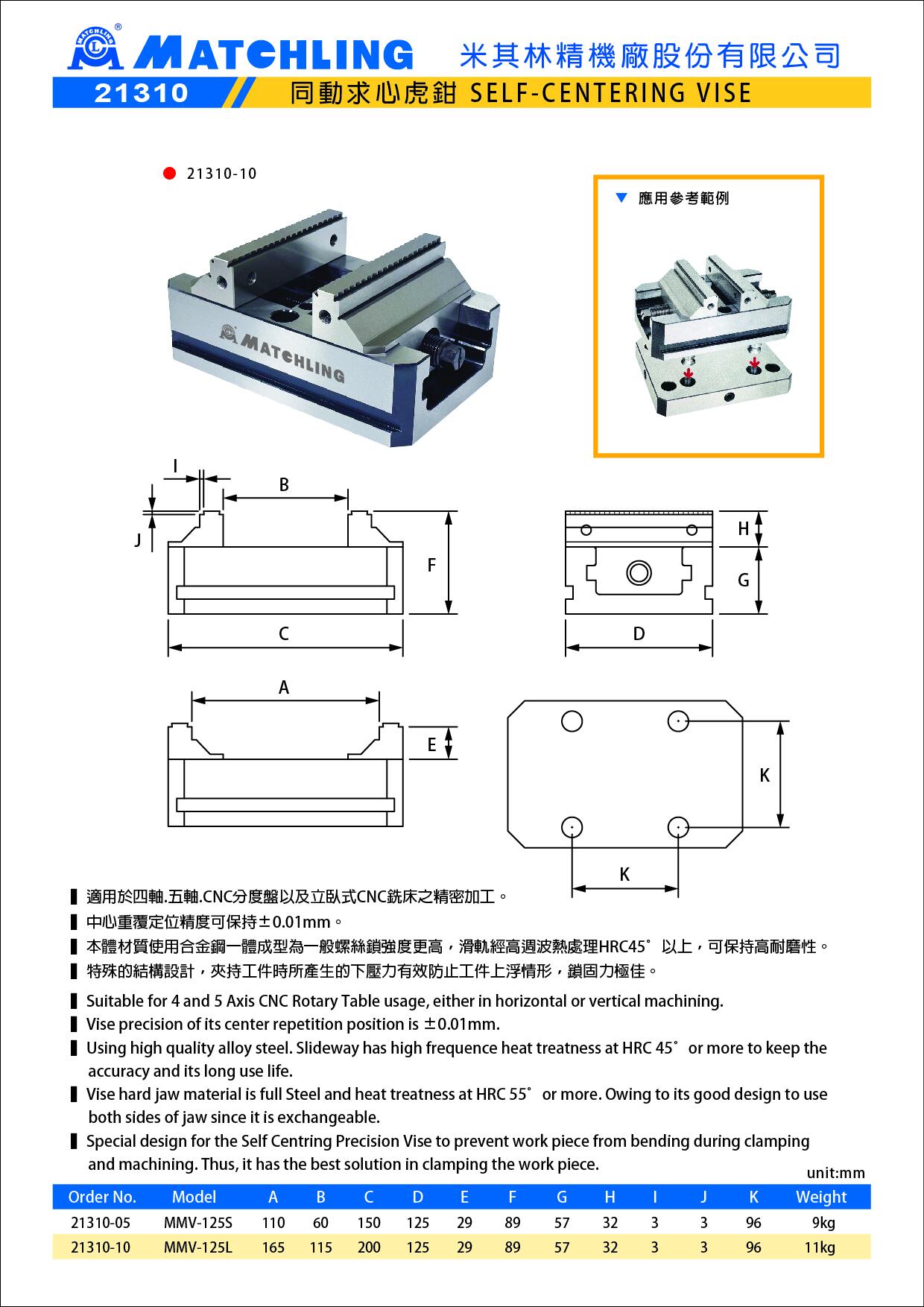

21310 Self-centering Vise


▍Suitable for 4 and 5 Axis CNC Rotary Table usage, either in horizontal or vertical machining.
▍Vise precision of its center repetition position is ±0.01mm.
▍Using high quality alloy steel. Slideway has high frequence heat treatness at HRC 45°or more
   to keep the accuracy and its long use life.
▍Vise hard jaw material is full Steel and heat treatness at HRC 55°or more. Owing to its good
   design to use both sides of jaw since it is exchangeable.
▍Special design for the Self Centring Precision Vise to prevent work piece from bending during
   clamping and machining. Thus, it has the best solution in clamping the work piece.




Order No.ModelABCDEFGHIJKWeight (kg)
21310-05MMV-125S110601501252989573233969
21310-10MMV-125L16511520012529895732339611

   UNIT : MM
