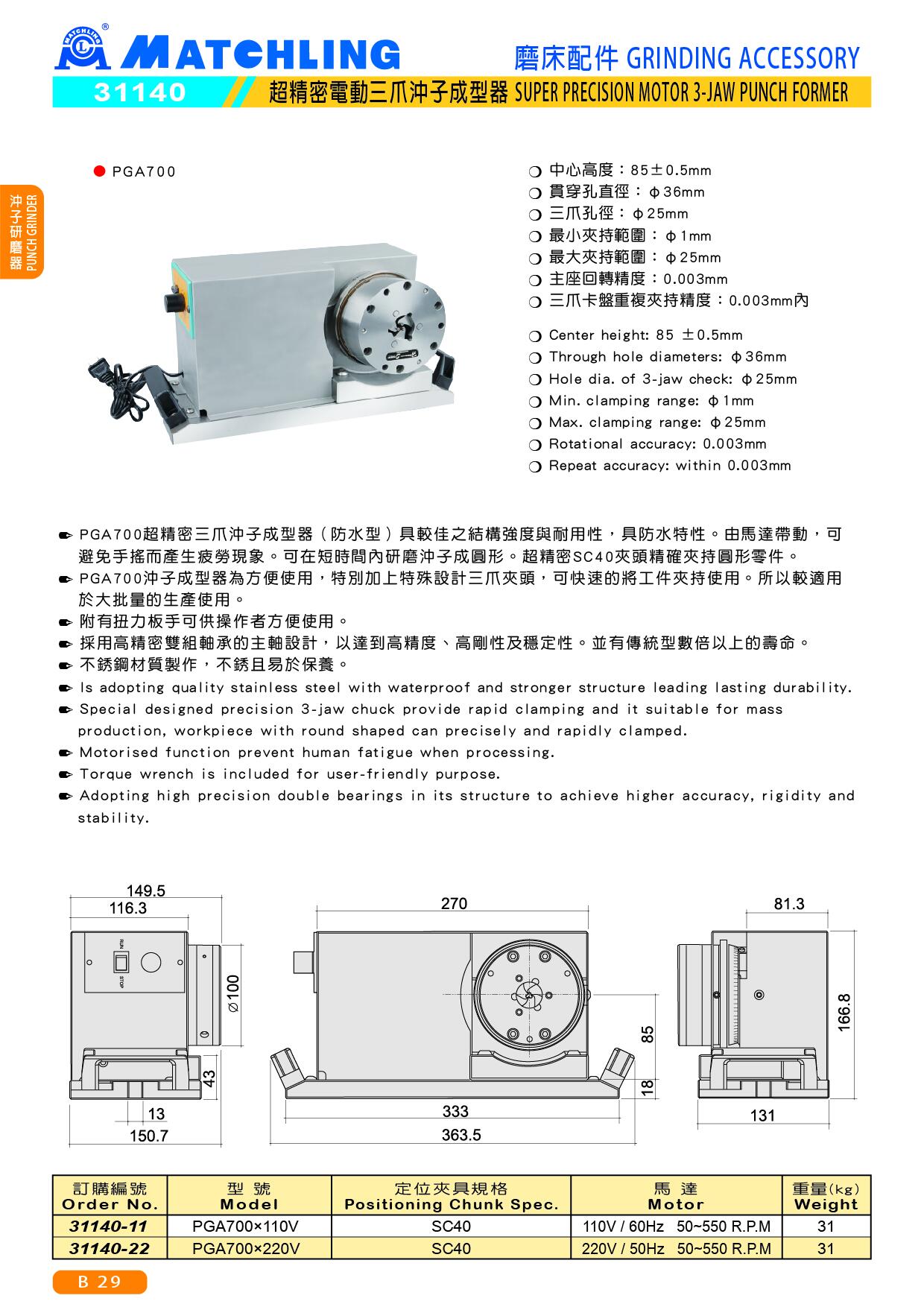

31140 SUPER PRECISION MOTOR 3-JAW PUNCH FORMER
● Is adopting quality stainless steel with waterproof and stronger structure leading lasting durability.
● Special designed precision 3-jaw chuck provide rapid clamping and it suitable for mass production, workpiece with round shaped can precisely and rapidly clamped.
● Motorised function prevent human fatigue when processing.
● Torque wrench is included for user-friendly purpose.
● Adopting high precision double bearings in its structure to achieve higher accuracy, rigidity and stability.
● 3-Jaw is not made of stainless steel.
■ Specifications:
● Center height: 85 ±0.5mm
● Through hole diameters: φ36mm
● Hole dia. of 3-jaw check: φ25mm
● Min. clamping range: φ1mm
● Max. clamping range: φ25mm
● Rotational accuracy: 0.003mm
● Repeat accuracy: within 0.003mm
unit：mm
| Order No. | Model | Positioning Chunk Spec・ | Motor | Weight (kg) |
| 31140-11 | PGA700x110V | SC40 | 110V / 60Hz 50-550 R.P.M | 31 |
| 31140-22 | PGA700x220V | SC40 | 220V / 50Hz 50-550 R.P.M | 31 |
