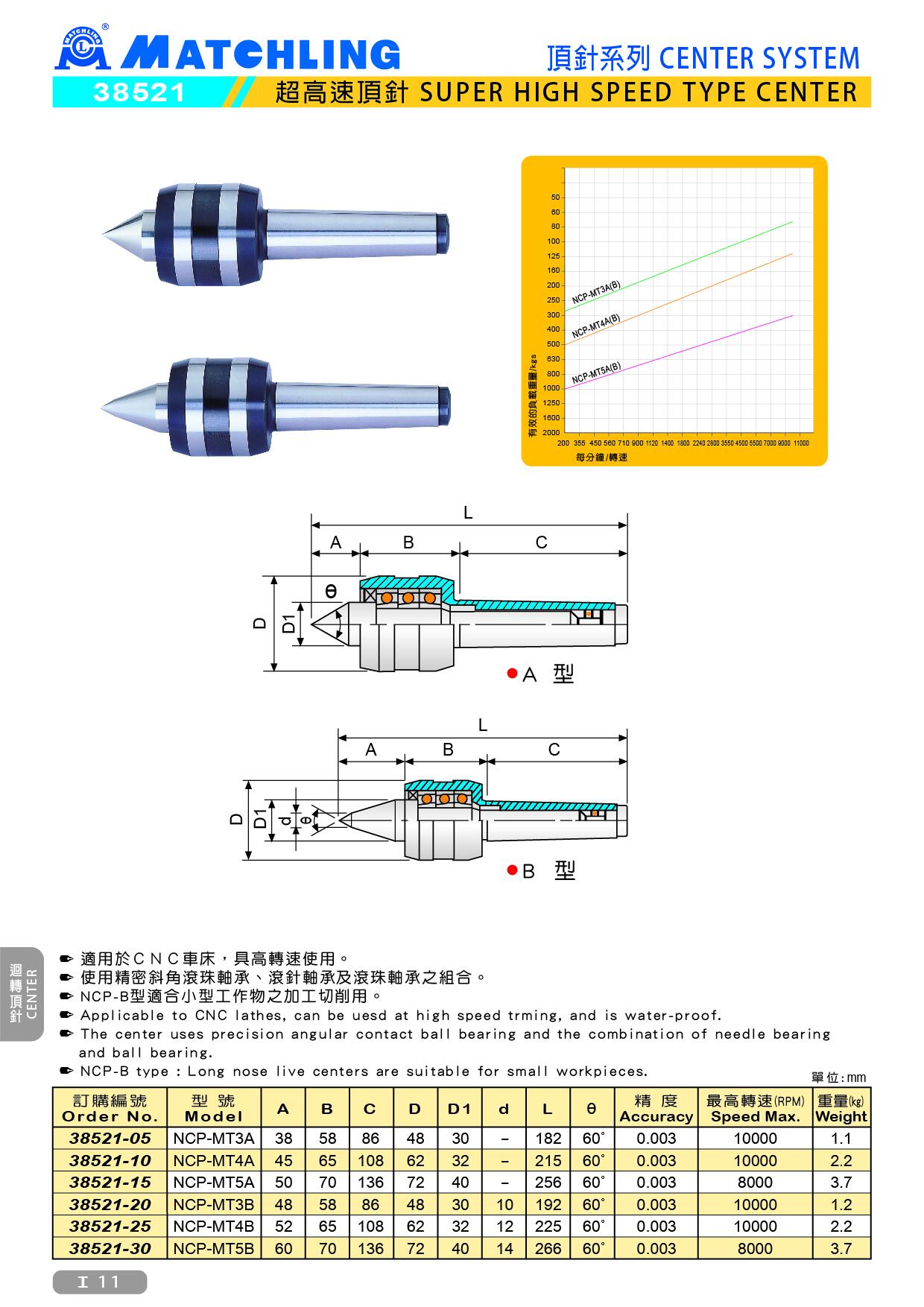

38521 SUPER HIGH SPEED TYPE CENTER
● Applicable to CNC lathes, can be uesd at high speed trming, and is water-proof.
● The center uses precision angular contact ball bearing and the combination of needle bearing and ball bearing.
● NCP-B type : Long nose live centers are suitable for small workpieces.
unit：mm
| Order No. | Model | A | B | C | D | D1 | d | L | θ | Accuracy | Speed Max・(RPM) | Weight (kg) |
| 38521-05 | NCP-MT3A | 38 | 58 | 86 | 48 | 30 | - | 182 | 60° | 0.003 | 10000 | 1.1 |
| 38521-10 | NCP-MT4A | 45 | 65 | 108 | 62 | 32 | - | 215 | 60° | 0.003 | 10000 | 2.2 |
| 38521-15 | NCP-MT5A | 50 | 70 | 136 | 72 | 40 | - | 256 | 60° | 0.003 | 8000 | 3.7 |
| 38521-20 | NCP-MT3B | 48 | 58 | 86 | 48 | 30 | 10 | 192 | 60° | 0.003 | 10000 | 1.2 |
| 38521-25 | NCP-MT4B | 52 | 65 | 108 | 62 | 32 | 12 | 225 | 60° | 0.003 | 10000 | 2.2 |
| 38521-30 | NCP-MT5B | 60 | 70 | 136 | 72 | 40 | 14 | 266 | 60° | 0.003 | 8000 | 3.7 |
