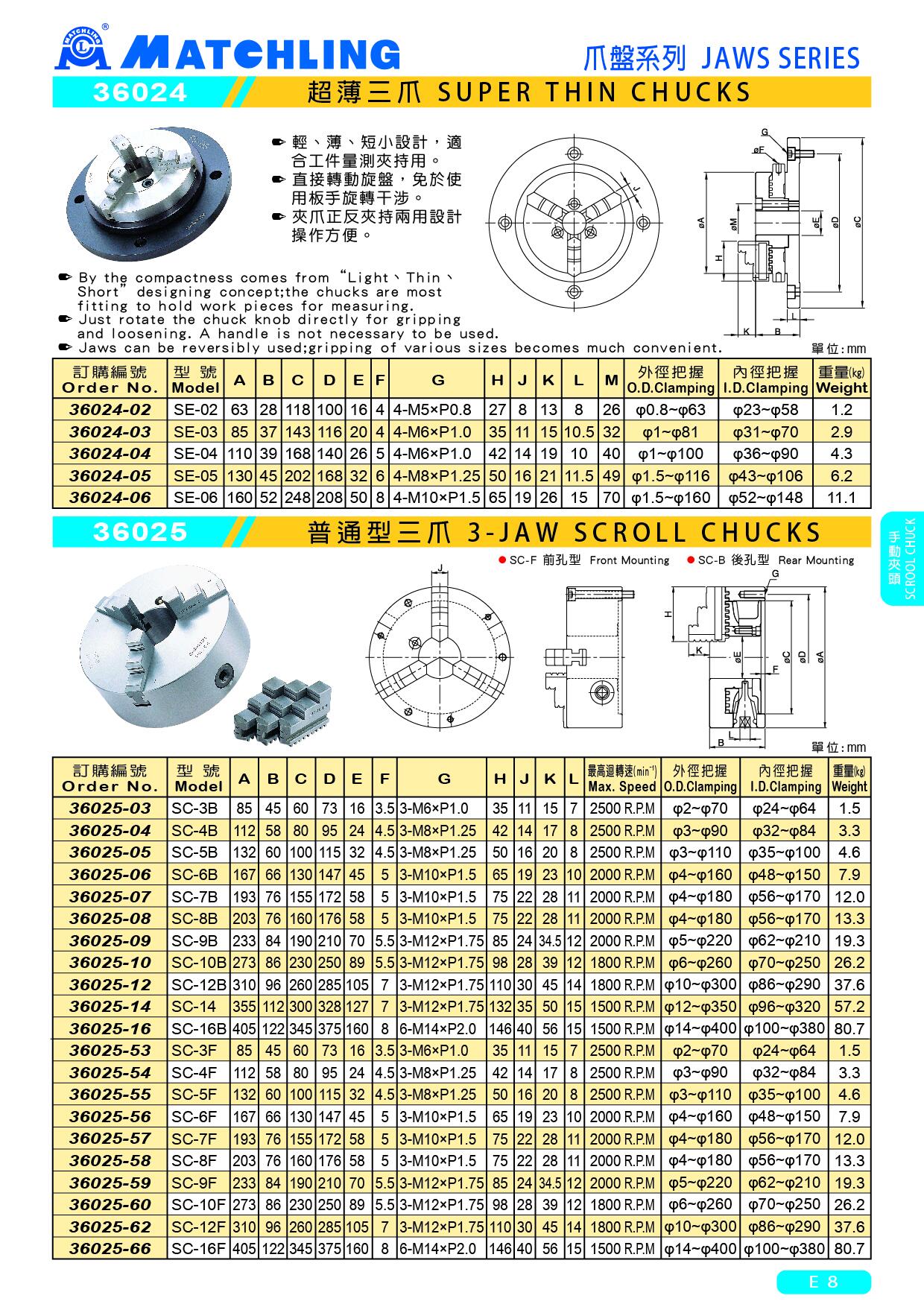

36024 SUPER THIN CHUCKS
● By the compactness comes from“Light、Thin、Short” designing concept;the chucks are most fitting to hold work pieces for measuring.
● Just rotate the chuck knob directly for gripping and loosening. A handle is not necessary to be used.
● Jaws can be reversibly used;gripping of various sizes becomes much convenient.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | J | K | L | M | O.D.CIamping | I.D.CIamping | Weight (kg) |
| 36024-02 | SE-02 | 63 | 28 | 118 | 100 | 16 | 4 | 4-M5xP0.8 | 27 | 8 | 13 | 8 | 26 | φ0.8~φ63 | φ23~φ58 | 1.2 |
| 36024-03 | SE-03 | 85 | 37 | 143 | 116 | 20 | 4 | 4-M6xP1.0 | 35 | 11 | 15 | 10.5 | 32 | φ1~φ81 | φ31~φ70 | 2.9 |
| 36024-04 | SE-04 | 110 | 39 | 168 | 140 | 26 | 5 | 4-M6xP1.0 | 42 | 14 | 19 | 10 | 40 | φ1~φ100 | φ36~φ90 | 4.3 |
| 36024-05 | SE-05 | 130 | 45 | 202 | 168 | 32 | 6 | 4-M8xP1.25 | 50 | 16 | 21 | 11.5 | 49 | φ1.5~φ116 | φ43~φ106 | 6.2 |
| 36024-06 | SE-06 | 160 | 52 | 248 | 208 | 50 | 8 | 4-M10xP1.5 | 65 | 19 | 26 | 15 | 70 | φ1.5~φ160 | φ52~φ148 | 11.1 |
