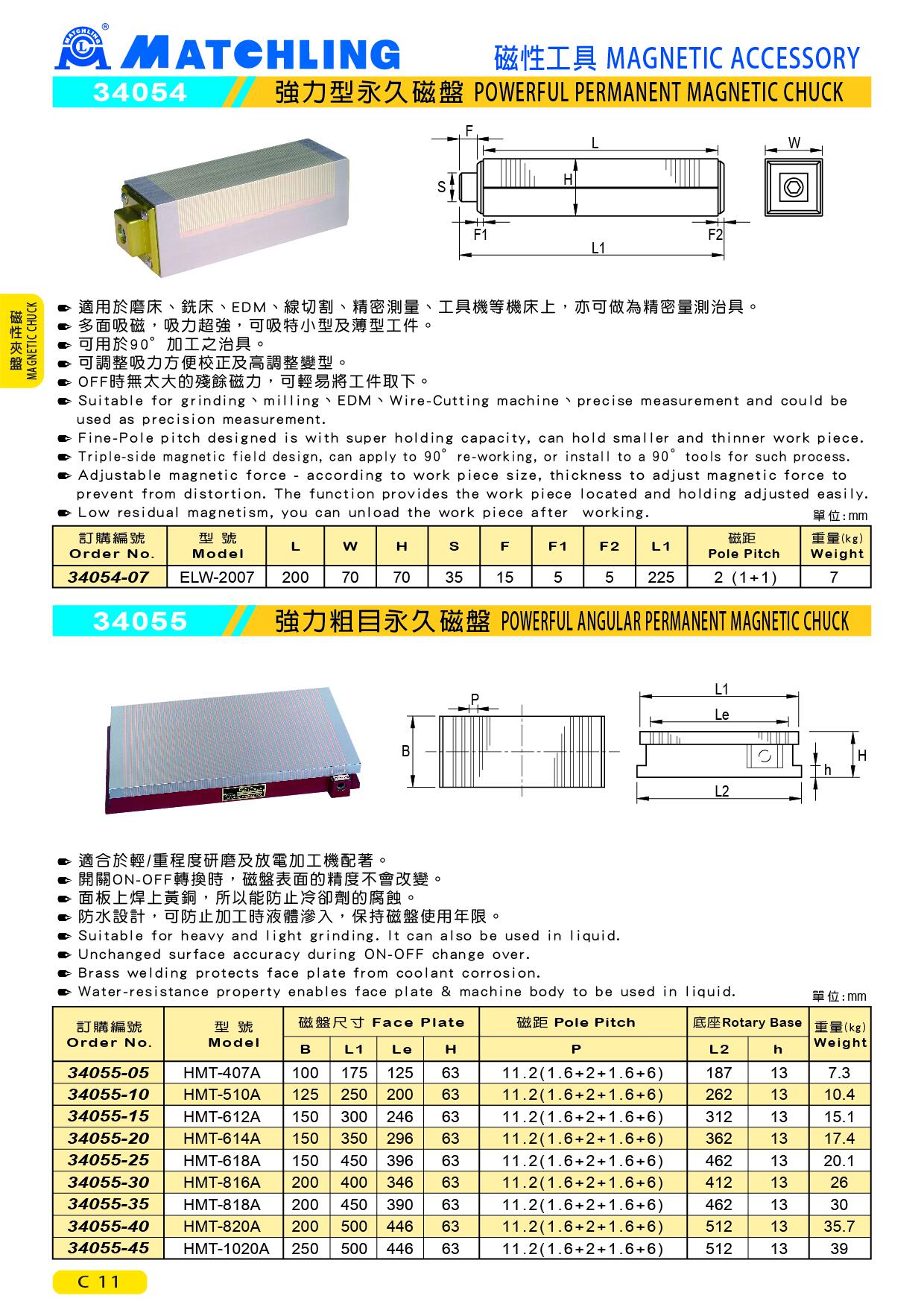

34055 POWERFUL ANGULAR PERMANENT MAGNETIC CHUCK
● Suitable for heavy and light grinding. It can also be used in liquid.
● Unchanged surface accuracy during ON-OFF change over.
● Brass welding protects face plate from coolant corrosion.
● Water-resistance property enables face plate & machine body to be used in liquid.
unit：mm
| Order No. | Model | Face Plate | Pole Pitch | Rotary Base | Weight (kg) | ||||
| B | L1 | Le | H | P | L2 | h | |||
| 34055-05 | HMT-407A | 100 | 175 | 125 | 63 | 11.2(1.6 + 2 + 1.6 + 6) | 187 | 13 | 7.3 |
| 34055-10 | HMT-510A | 125 | 250 | 200 | 63 | 11.2(1.6 + 2 + 1.6 + 6) | 262 | 13 | 10.4 |
| 34055-15 | HMT-612A | 150 | 300 | 246 | 63 | 11.2(1.6 + 2 + 1.6 + 6) | 312 | 13 | 15.1 |
| 34055-20 | HMT-614A | 150 | 350 | 296 | 63 | 11.2(1.6 + 2 + 1.6 + 6) | 362 | 13 | 17.4 |
| 34055-25 | HMT-618A | 150 | 450 | 396 | 63 | 11.2(1.6 + 2 + 1.6 + 6) | 462 | 13 | 20.1 |
| 34055-30 | HMT-816A | 200 | 400 | 346 | 63 | 11.2(1.6 + 2 + 1.6 + 6) | 412 | 13 | 26 |
| 34055-35 | HMT-818A | 200 | 450 | 390 | 63 | 11.2(1.6 + 2 + 1.6 + 6) | 462 | 13 | 30 |
| 34055-40 | HMT-820A | 200 | 500 | 446 | 63 | 11.2(1.6 + 2 + 1.6 + 6) | 512 | 13 | 35.7 |
| 34055-45 | HMT-1020A | 250 | 500 | 446 | 63 | 11.2(1.6 + 2 + 1.6 + 6) | 512 | 13 | 39 |
