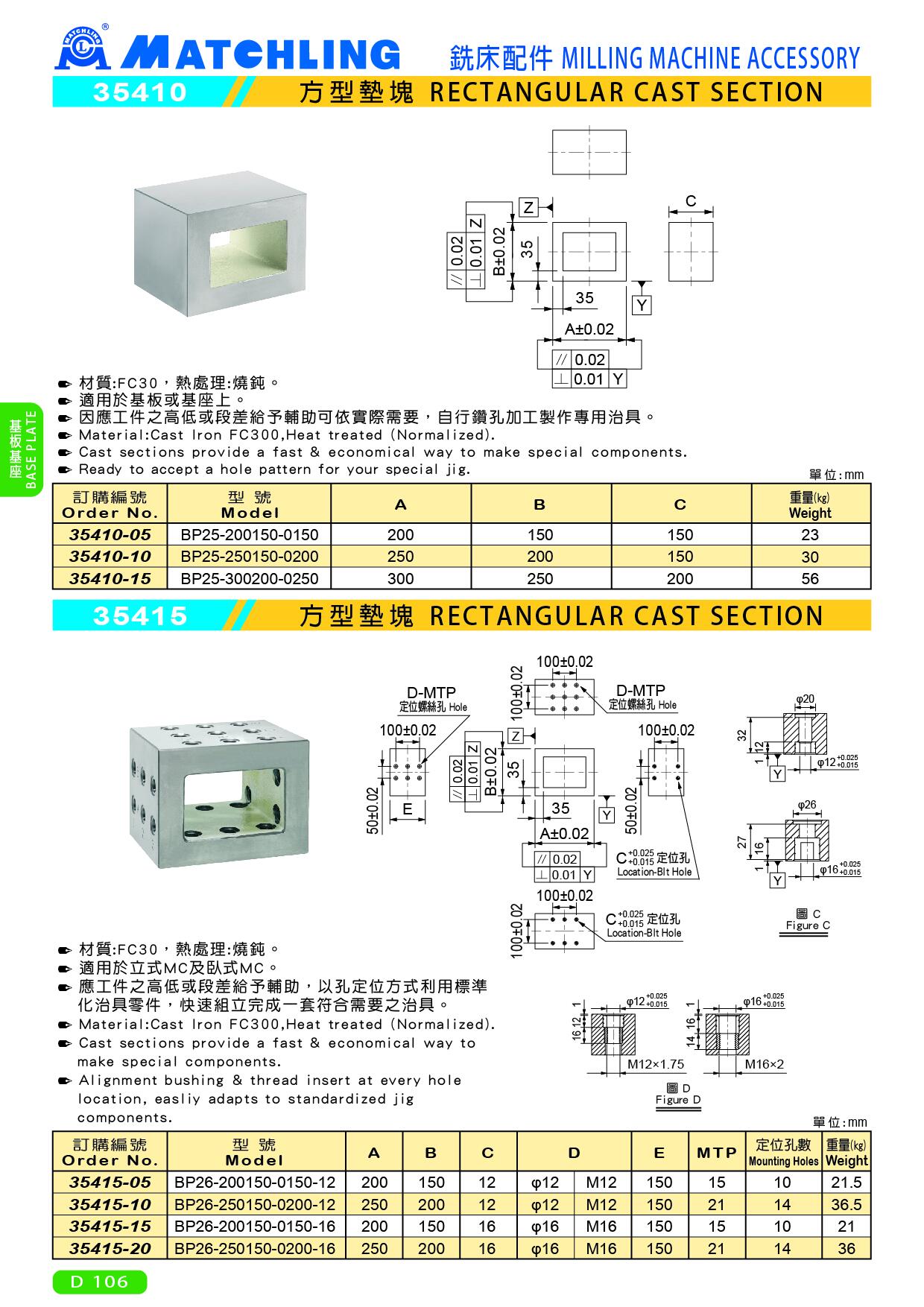

35415 RECTANGULAR CAST SECTION
● Material:Cast Iron FC300,Heat treated (Normalized).
● Cast sections provide a fast & economical way to make special components.
● Alignment bushing & thread insert at every hole location, easliy adapts to standardized jig components.
unit：mm
| Order No. | Model | A | B | C | D | E | MTP | Mounting Holes | Weight (kg) | |
| 35415-05 | BP26-200150-0150-12 | 200 | 150 | 12 | φ12 | M12 | 150 | 15 | 10 | 21.5 |
| 35415-10 | BP26-250150-0200-12 | 250 | 200 | 12 | φ12 | M12 | 150 | 21 | 14 | 36.5 |
| 35415-15 | BP26-200150-0150-16 | 200 | 150 | 16 | φ16 | M16 | 150 | 15 | 10 | 21 |
| 35415-20 | BP26-250150-0200-16 | 250 | 200 | 16 | φ16 | M16 | 150 | 21 | 14 | 36 |
