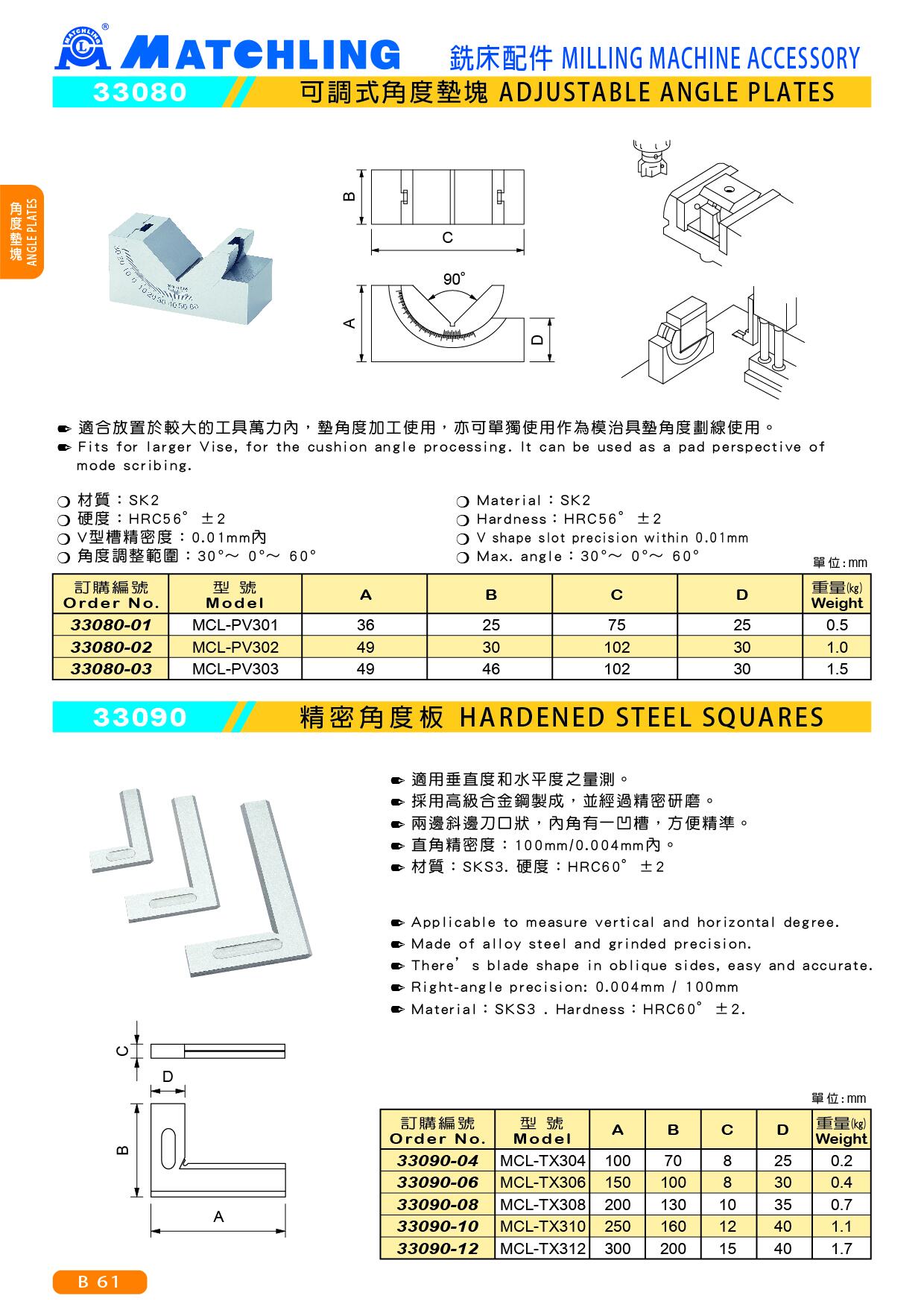

33090 HARDENED STEEL SQUARES
● Applicable to measure vertical and horizontal degree.
● Made of alloy steel and grinded precision.
● There’s blade shape in oblique sides, easy and accurate.
● Right-angle precision: 0.004mm / 100mm
● Material：SKS3 . Hardness：HRC60°±2.
unit：mm
| Order No | Model | A | B | C | D | Weight (kg) |
| 33090-04 | MCL-TX304 | 100 | 70 | 8 | 25 | 0.2 |
| 33090-06 | MCL-TX306 | 150 | 100 | 8 | 30 | 0.4 |
| 33090-08 | MCL-TX308 | 200 | 130 | 10 | 35 | 0.7 |
| 33090-10 | MCL-TX310 | 250 | 160 | 12 | 40 | 1.1 |
| 33090-12 | MCL-TX312 | 300 | 200 | 15 | 40 | 1.7 |
