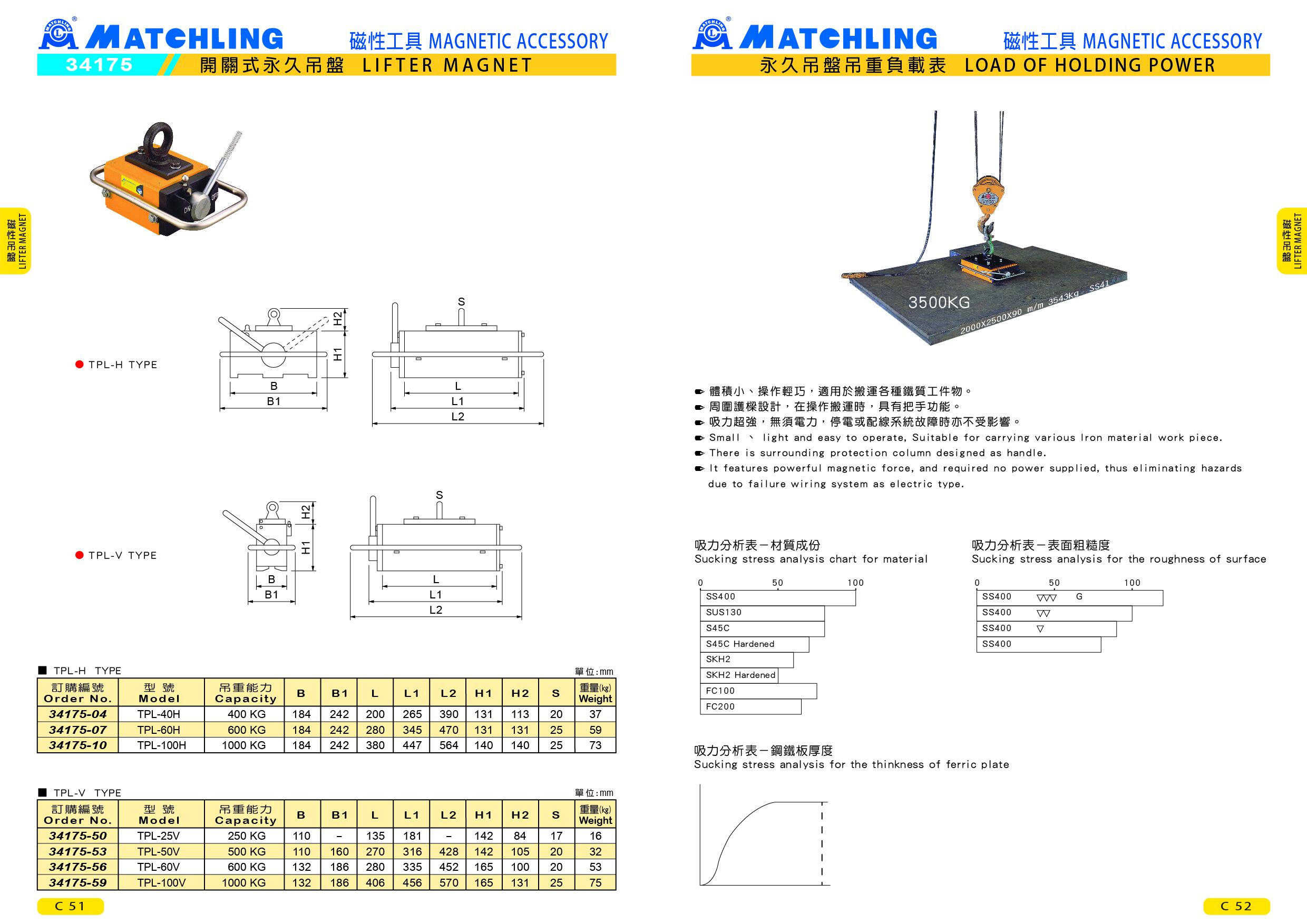

34175 LIFTER MAGNET
● Small 、 light and easy to operate, Suitable for carrying various Iron material work piece.
● There is surrounding protection column designed as handle.
● It features powerful magnetic force, and required no power supplied, thus eliminating hazards due to failure wiring system as electric type.
■ TPL-H TYPE unit：mm
| Order No. | Model | Capacity | B | B1 | L | L1 | L2 | H1 | H2 | S | Weight (kg) |
| 34175-04 | TPL-40H | 400 KG | 184 | 242 | 200 | 265 | 390 | 131 | 113 | 20 | 37 |
| 34475-07 | TPL-60H | 600 KG | 184 | 242 | 280 | 345 | 470 | 131 | 131 | 25 | 59 |
| 34175-10 | TPL-100H | 1000 KG | 184 | 242 | 380 | 447 | 564 | 140 | 140 | 25 | 73 |
| 34175-20 | TPL-200H | 2000 KG | 203 | 260 | 405 | 455 | 565 | 142 | 153 | 32 | 114 |
| 34175-40 | TPL-400H | 4000 KG | 406 | 450 | 405 | 455 | 565 | 142 | 160 | 36 | 170 |
■ TPL-V TYPE unit：mm
| Order No. | Model | Capacity | B | B1 | L | L1 | L2 | H1 | H2 | S | Weight (kg) |
| 34175-50 | TPL-25V | 250 KG | 110 | - | 135 | 181 | 一 | 142 | 84 | 17 | 16 |
| 34475-53 | TPL-50V | 500 KG | 110 | 160 | 270 | 316 | 428 | 142 | 105 | 20 | 32 |
| 34175-56 | TPL-60V | 600 KG | 132 | 186 | 280 | 335 | 452 | 165 | 100 | 20 | 53 |
| 34175-59 | TPL-100V | 1000 KG | 132 | 186 | 406 | 456 | 570 | 165 | 131 | 25 | 75 |
| 34175-62 | TPL-120V | 1200 KG | 174 | 224 | 415 | 460 | 570 | 210 | 135 | 25 | 102 |
