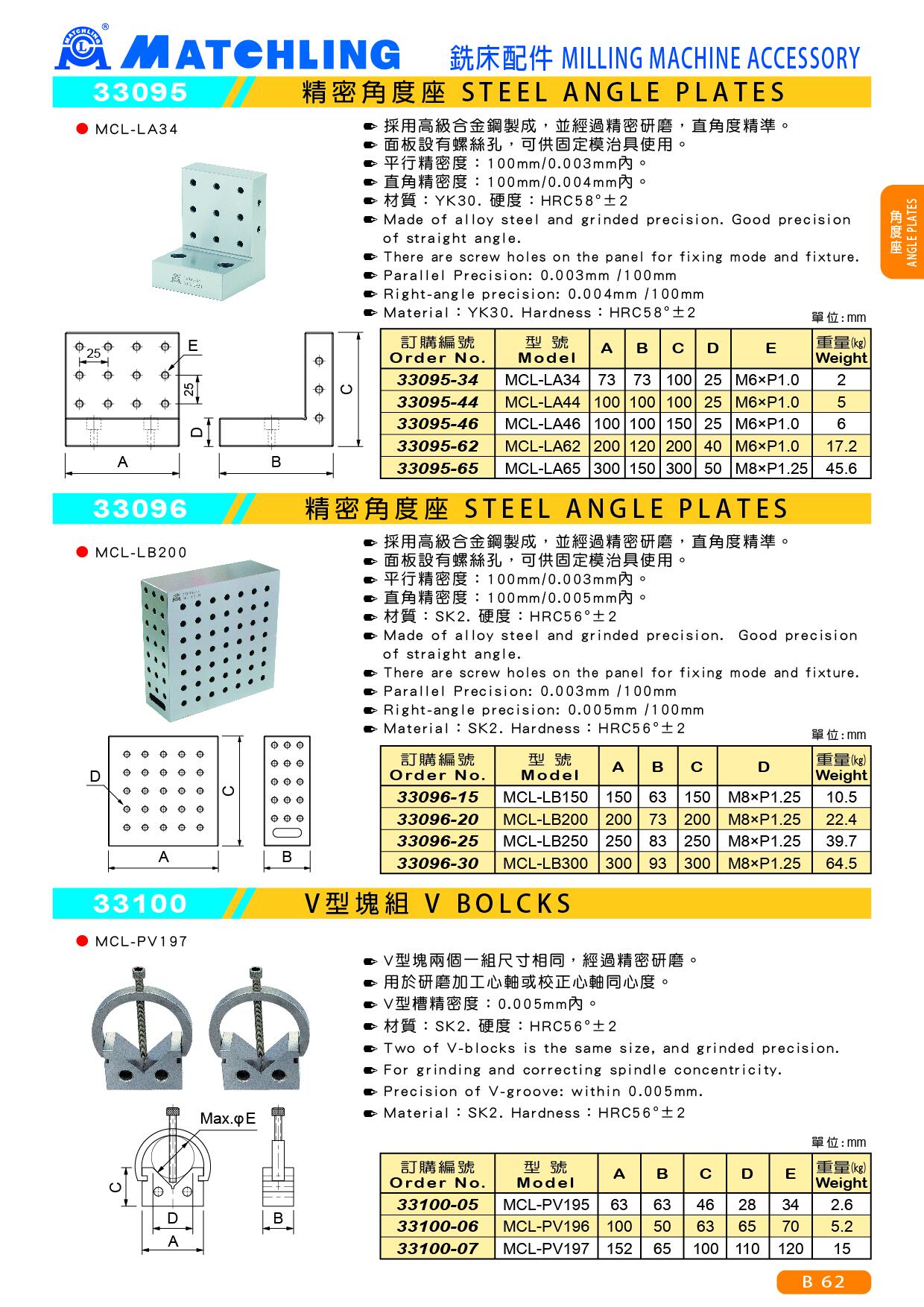

33095 STEEL ANGLE PLATES
● Made of alloy steel and grinded precision. Good precision of Straight angle.
● There are screw holes on the panel for fixing mode and fixture.
● Parallel Precision: 0.003mm /100mm
● Right-angle precision: 0.004mm /100mm
● Material：YK30. Hardness：HRC58°±2
unit：mm
| Order No | Model | A | B | C | D | E | Weight (kg) |
| 33095-34 | MCL-LA34 | 73 | 73 | 100 | 25 | M6xP1.0 | 2 |
| 33095-44 | MCL-LA44 | 100 | 100 | 100 | 25 | M6xP1.0 | 5 |
| 33095-46 | MCL-LA46 | 100 | 100 | 150 | 25 | M6xP1.0 | 6 |
| 33095-62 | MCL-LA62 | 200 | 120 | 200 | 40 | M6xP1.0 | 17.2 |
| 33095-65 | MCL-LA65 | 300 | 150 | 300 | 50 | M8xP1.25 | 45.6 |
