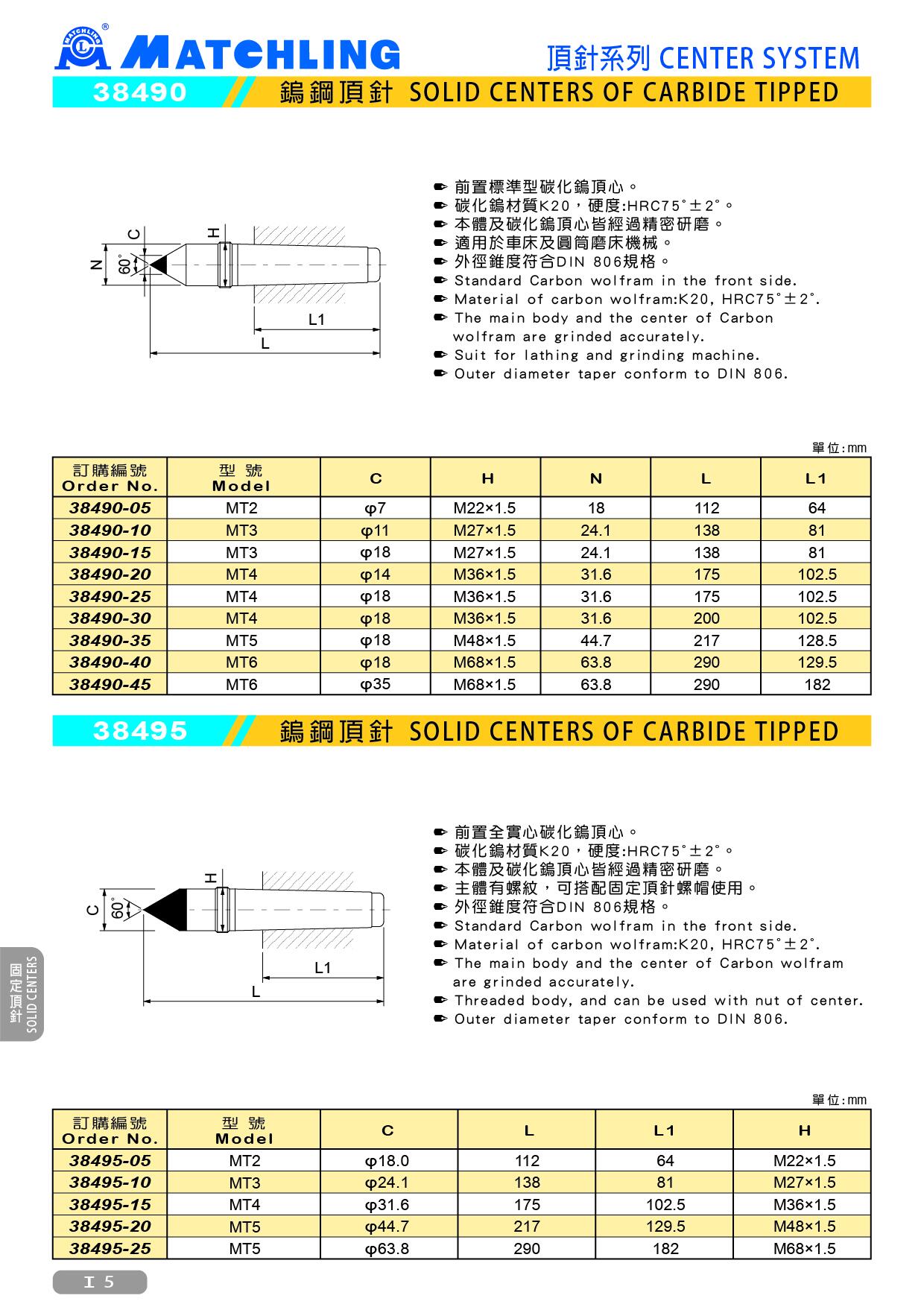

38495 SOLID CENTERS OF CARBIDE TIPPED
● Standard Carbon wolfram in the front side.
● Material of carbon wolfram:K20, HRC75˚±2˚.
● The main body and the center of Carbon wolfram are grinded accurately.
● Threaded body, and can be used with nut of center.
● Outer diameter taper conform to DIN 806.
unit：mm
| Order No. | Model | C | L | L1 | H |
| 38495-05 | MT2 | φ8.0 | 112 | 64 | M22X1.5 |
| 38495-10 | MT3 | φ24.1 | 138 | 81 | M27x1.5 |
| 38495-15 | MT4 | φ31.6 | 175 | 102.5 | M36x1.5 |
| 38495-20 | MT5 | φ44.7 | 217 | 129.5 | M48x1.5 |
| 38495-25 | MT5 | φ63.8 | 290 | 182 | M68x1.5 |
