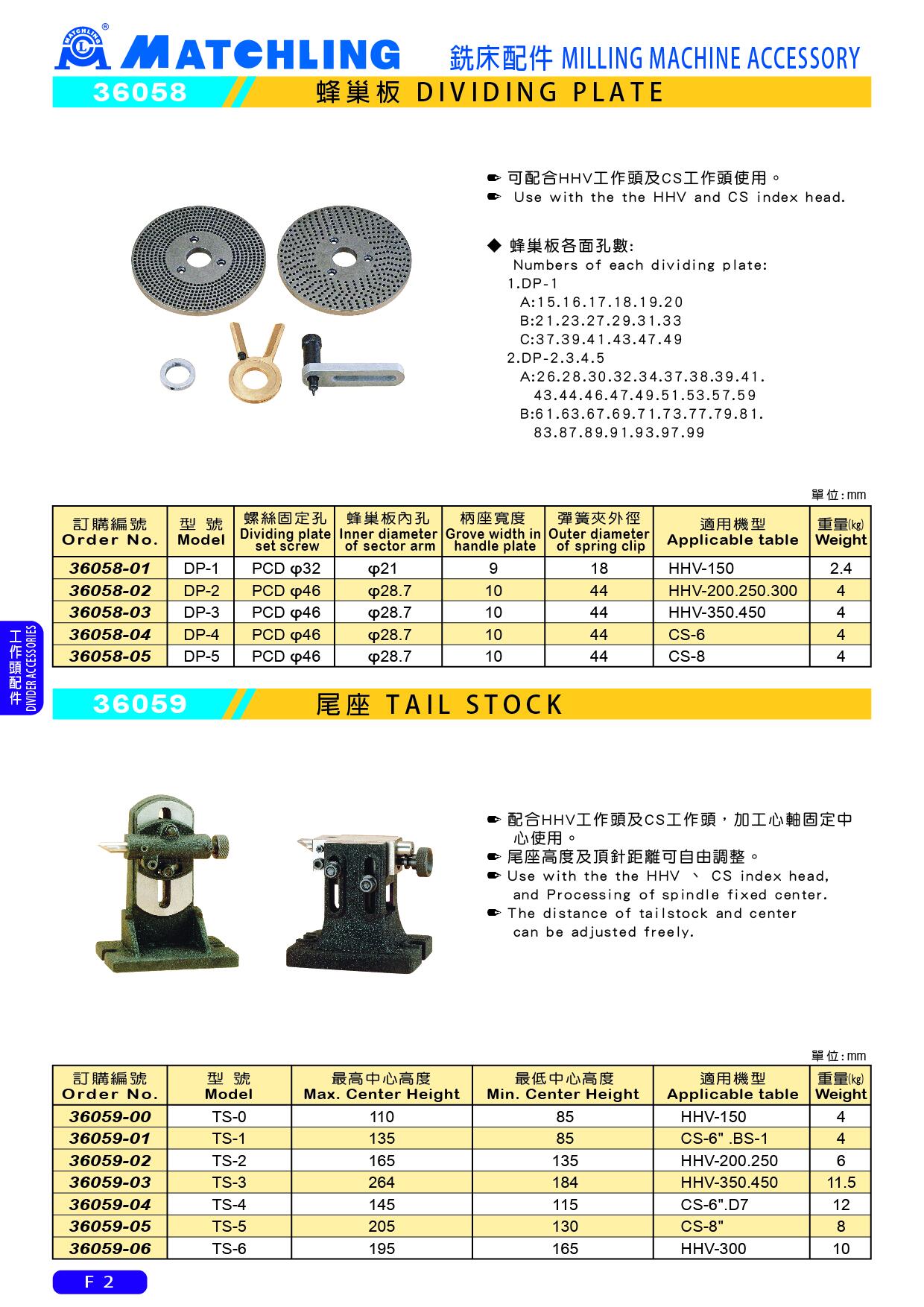

36059 TAIL STOCK
● Use with the the HHV、CS index head, and Processing of spindle fixed center.
● The distance of tailstock and center can be adjusted freely.
unit：mm
| Order No. | Model | Max. Center Height | Min. Center Height | Applicable table | Weight (kg) |
| 36059-00 | TS-0 | 110 | 85 | HHV-150 | 4 |
| 36059-01 | TS-1 | 135 | 85 | CS-6”.BS-1 | 4 |
| 36059-02 | TS-2 | 165 | 135 | HHV-200.250 | 6 |
| 36059-03 | TS-3 | 264 | 184 | HHV-350.450 | 11.5 |
| 36059-04 | TS-4 | 145 | 115 | CS-6”.D7 | 12 |
| 36059-05 | TS-5 | 205 | 130 | CS-8H | 8 |
| 36059-06 | TS-6 | 195 | 165 | HHV-300 | 10 |
