► 重複定位精度為±0.015MM。

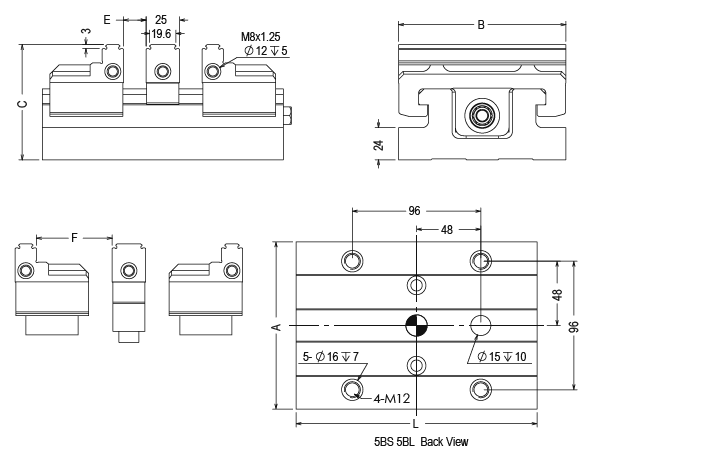

| Order NO. | Model | A | B | C | L | E | F | Force | Vise Accembly |
Fig | weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 21005-50 | MCL-5BS070-S | 125 | 125 | 86 | 180 | 0-40 | 40-70 | 15kN/85Nm | Max.100Nm | S | 9.8 |
| 21005-52 | MCL-5BS070-C | 125 | 125 | 86 | 180 | 0-40 | 40-70 | 15kN/85Nm | Max.100Nm | C | 9.8 |
| 21005-54 | MCL-5BL090-S | 125 | 125 | 86 | 230 | 0-57 | 40-90 | 15kN/85Nm | Max.100Nm | S | 11.4 |
| 21005-56 | MCL-5BL090-C | 125 | 125 | 86 | 230 | 0-57 | 40-90 | 15kN/85Nm | Max.100Nm | C | 11.4 |
