► 重複定位精度為±0.015MM。

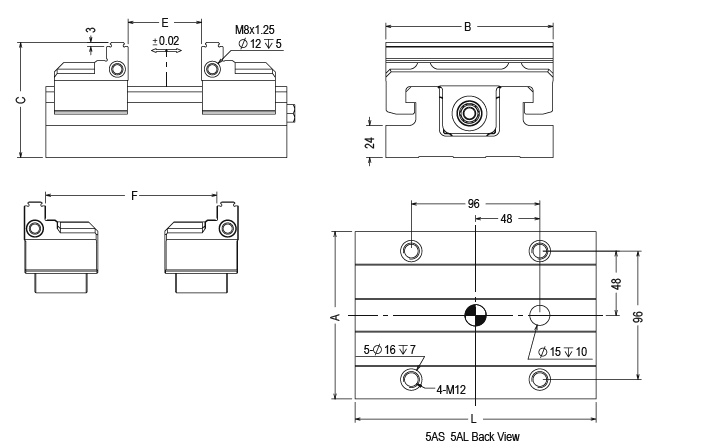

| Order NO. | Model | A | B | C | L | E | F | Force | Vise Accembly |
Fig | weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 21000-50 | MCL-5AS155-S | 125 | 125 | 86 | 180 | 0-90 | 80-155 | 15.6kN/85Nm | Max.100Nm | S | 9 |
| 21000-52 | MCL-5AS155-C | 125 | 125 | 86 | 180 | 0-90 | 80-155 | 15.6kN/85Nm | Max.100Nm | C | 9 |
| 21000-54 | MCL-5AL205-S | 125 | 125 | 86 | 230 | 0-140 | 80-205 | 15.6kN/85Nm | Max.100Nm | S | 10.6 |
| 21000-56 | MCL-5AL205-C | 125 | 125 | 86 | 230 | 0-140 | 80-205 | 15.6kN/85Nm | Max.100Nm | C | 10.6 |
